昨晚一直覺得上網整個變得卡頓卡頓，查了一下一直有 CN 大量 IP 連入 3wa 爬資料
也不是說不讓看，只是大量網段一直連

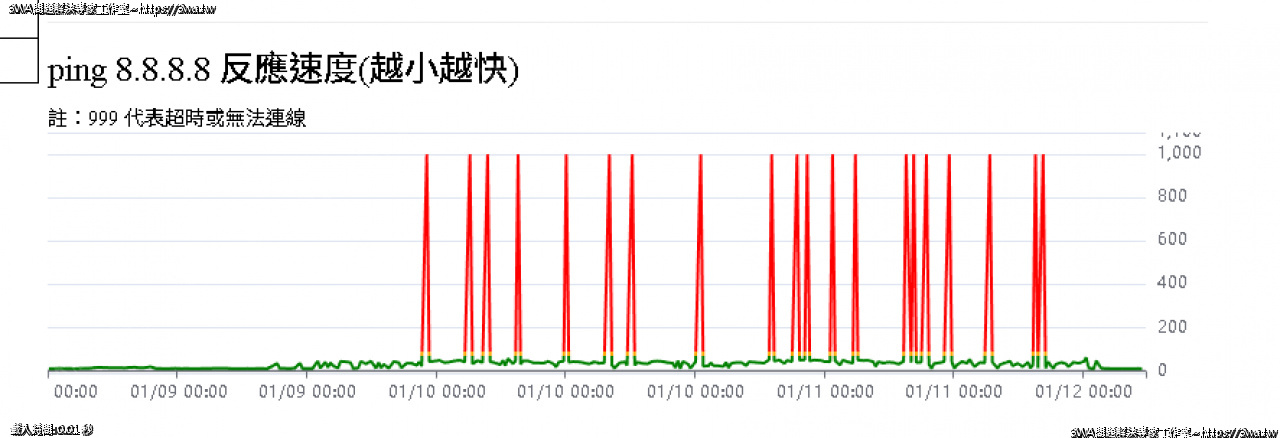

把 40M 上傳打到剩 10M 上傳，上網也從 10ms 內的反應速度變成 30~50ms 有時還會爆高
目前針對 apache2 來訪 log 採最近 5min 紀錄，可以列出哪些 ip 連入，並用 whois 查詢該國家
列近期來訪 ip + 國家
root@3wa:~/bin# cat apache2_now_country.sh
#!/bin/bash
awk -v d="$(date -d '5 minutes ago' '+%d/%b/%Y:%H:%M')" '$4 > "["d {print $1}' /var/log/apache2/access.log \
| sort | uniq -c | sort -nr | head -20 \
| while read count ip; do
c=$(whois "$ip" | awk '/country:/ {print $2; exit}')
printf "%5s %-15s %s\n" "$count" "$ip" "$c"
done
(base) root@3wa:~/bin# apache2_now_country.sh
133 127.0.0.1
64 101.9.98.173 TW
60 101.10.78.214 TW
50 211.20.175.247 TW
45 59.126.75.42 TW
42 54.83.109.89
26 111.246.117.37 TW
9 40.77.167.16
8 40.77.167.158
7 52.167.144.166
7 40.77.167.18
7 163.29.1.136 TW
7 123.252.104.14 TW
5 66.249.71.35
5 66.249.71.33
5 114.119.141.133 SG
4 66.249.66.35
4 66.249.66.14
3 66.249.71.173
3 66.249.66.202
root@3wa:~/bin# cat apache2_now_country_v2.sh
#!/bin/bash
awk -v d="$(date -d '5 minutes ago' '+%d/%b/%Y:%H:%M')" '$4 > "["d {print $1}' /var/log/apache2/access.log \
| sort | uniq -c | sort -nr | head -20 \
| while read count ip; do
whois "$ip" | awk -v c="$count" -v ip="$ip" '
BEGIN{country=""; org=""}
/country:/ {country=$2}
/Country:/ {country=$2}
/OrgName:/ || /org-name:/ || /descr:/ || /Organization:/ {
if (org=="") org=$0
}
END{
if (country=="") {
if (org ~ /Google/) country="US"
else if (org ~ /Amazon/) country="US"
else if (org ~ /Cloudflare/) country="US"
else if (org ~ /Microsoft/) country="US"
else if (org ~ /Alibaba/) country="CN"
else if (org ~ /Tencent/) country="CN"
else country="??"
}
printf "%5s %-15s %-3s %s\n", c, ip, country, org
}
'
done
(base) root@3wa:~/bin# apache2_now_country_v2.sh
182 216.73.216.173 US Organization: Amazon.com, Inc. (AMAZO-4)
181 127.0.0.1 US Organization: Internet Assigned Numbers Authority (IANA)
134 203.69.234.175 TW descr: Data Communication Business Group,
35 111.243.76.122 TW descr: Data Communication Business Group,
18 111.246.117.37 TW descr: Data Communication Business Group,
12 66.249.71.33 US Organization: Google LLC (GOGL)
10 211.20.175.247 TW descr: Data Communication Business Group,
7 66.249.71.173 US Organization: Google LLC (GOGL)
7 40.77.178.50 US Organization: Microsoft Corporation (MSFT)
6 66.249.66.204 US Organization: Google LLC (GOGL)
6 66.249.66.12 US Organization: Google LLC (GOGL)
6 114.119.158.74 SG descr: Huawei-Cloud-SG
5 66.249.71.162 US Organization: Google LLC (GOGL)
5 66.249.66.3 US Organization: Google LLC (GOGL)
5 66.249.66.167 US Organization: Google LLC (GOGL)
5 114.119.138.36 SG descr: Huawei-Cloud-SG
4 66.249.71.35 US Organization: Google LLC (GOGL)
4 66.249.66.161 US Organization: Google LLC (GOGL)
3 66.249.71.7 US Organization: Google LLC (GOGL)
如果連線數異常高又加上是 CN 與 HK 跟 SG 羽山基本上就會阻斷了
// 暫時一次性名單
$banIPs = [
'59.35.',
'59.39.',
'59.33.',
'59.32.',
'121.13.',
'121.12.',
'121.11.',
'121.10.',
'61.146.', // 61.146.3.105 / 61.146.24.152
'61.145.',
'61.144.',
'61.143.',
'61.142.',
'61.141.',
'219.136.',
'219.135.',
'219.134.',
'219.133.',
'219.132.',
'219.131.',
'219.130.',
'219.129.',
'219.128.',
'8.217.', // 香港
'74.7.',
'121.9.',
'121.11',
'14.',
'116.16.', // 116.16.154.134 來源網段
'59.34.', // 59.34.190.88 / 59.34.159.210 / 59.34.158.159
'59.38.',
'58.63.',
'183.0.', // 183.0.* 出現攻擊來源
'183.1.', // 可視最近 log 補充
'113.82.',
'113.100.',
'114.119.13', // 新加坡
'114.119.14' // 新加坡
];
// 確認 ban 除名單
13.79.87.25
38.55.16.34
74.82.63.98
31.57.219.79
36.77.31.165
45.125.12.92
5.189.187.80
87.121.84.38
91.224.92.14
102.22.20.125
112.7.185.105
115.52.20.216
125.17.108.32
128.1.132.228
142.248.80.57
15.204.155.25
152.57.91.153
163.5.221.205
179.43.191.19
194.182.87.51
34.138.101.23
4.190.211.114
8.218.110.131
89.42.231.200
93.123.72.132
94.26.106.102
94.26.106.103
98.159.37.142
98.159.37.143
101.36.110.220
101.36.116.171
103.149.27.214
116.179.37.104
116.179.37.113
125.230.243.22
144.124.238.19
165.232.99.202
167.99.180.188
176.65.149.253
195.178.110.25
35.216.254.237
42.236.238.243
45.139.104.168
65.181.112.213
65.181.125.101
78.153.140.179
78.153.140.224
84.247.150.119
91.232.238.112
123.128.126.122
125.230.201.200
125.230.209.170
125.230.212.103
125.230.223.146
173.239.218.189
173.239.218.199
185.241.208.170
193.142.147.209
195.178.110.162
195.178.110.190
195.178.110.246
這是目前已擋掉的 IP ，如有誤擋再請與我聯絡
這些 IP 檔掉後，下載與上傳速度就恢復正常，網路可繼續使用
fail2ban 也一起使用
# apt install fail2ban
# systemctl enable fail2ban
# systemctl start fail2ban
# vim /etc/fail2ban/filter.d/apache-abuse.conf
[Definition]
# 這裡抓所有 HTTP 請求行為，主要用來計數 flood / scan
# <HOST> 會被 fail2ban 替換成 IP
failregex = ^<HOST> .* "(GET|POST|HEAD|PUT|DELETE|OPTIONS|TRACE)"
# 如果有想排除的 IP 或 pattern 可以寫在這
ignoreregex =
# vim /etc/fail2ban/jail.d/apache-abuse.conf
[apache-abuse]
enabled = true
port = http,https
filter = apache-abuse
logpath = /var/log/apache2/access.log
maxretry = 300
findtime = 60
bantime = 3600
action = iptables[name=apache-abuse, port="http,https", protocol=tcp]
ignoreip = 127.0.0.1/8 ::1 192.168.0.0/16 211.20.175.0/24
# 載入設定
# fail2ban-client reload
# 查看狀況
# fail2ban-client status apache-abuse
近期從 1/9 以後就有微量的流量攻擊，阻斷後再觀察看看

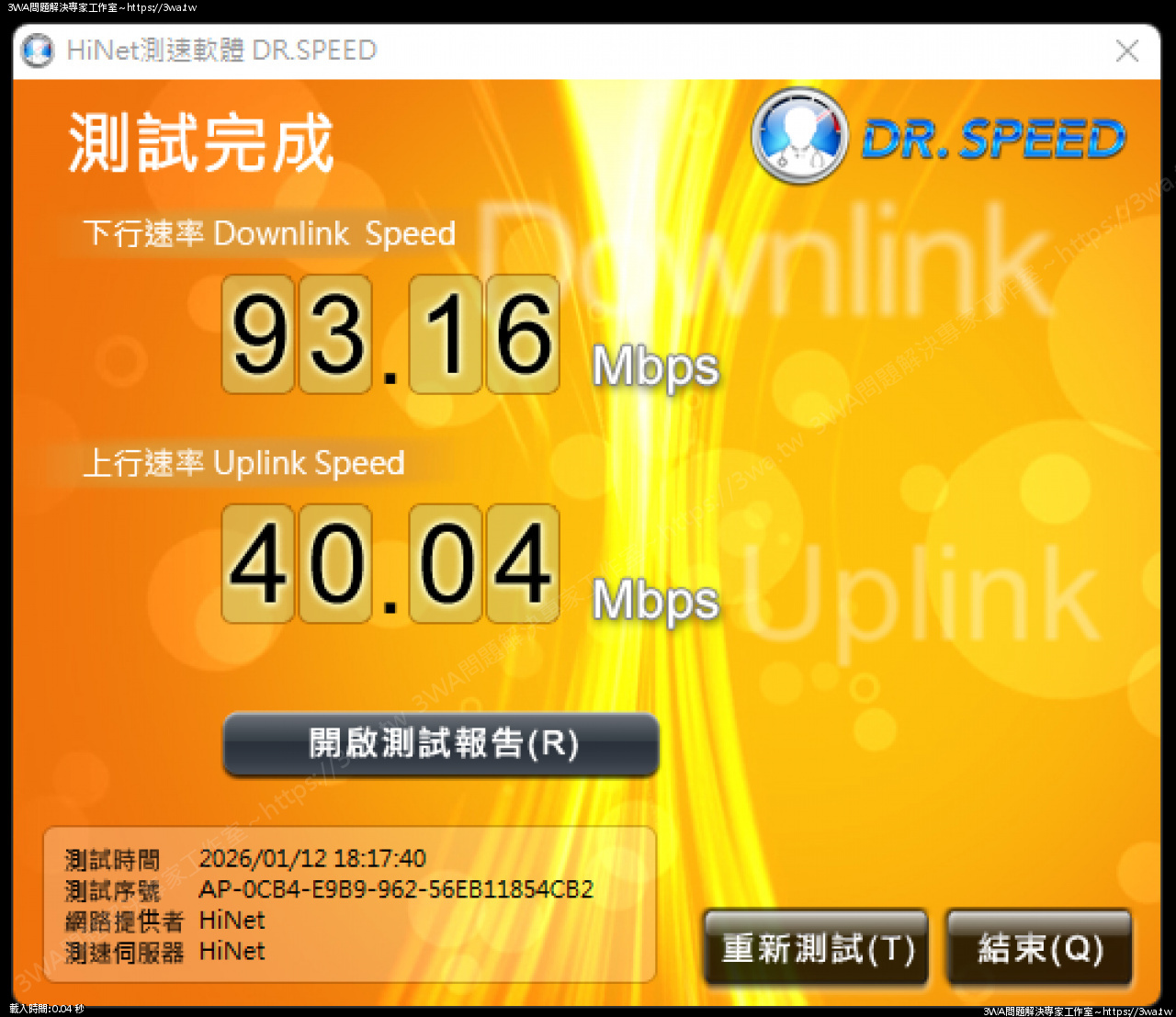

把一些網攻的來源 ban 掉後，上行又恢復到 40M 了，網路順暢
